Scaffolding Q235 Hollow and solid floor lift screw jack base
|Categories||Jack base& U-head jack|
|Album||View larger image|
|Material:||20# steel Screw|
|FOB port||Tianjin port|
|Terms of Payment||L/C, T/T|
Place of Origin: Tianjin , China
Brand Name: Screw jack
Model Number: Scaffolding System
Material: 20# steel Screw
Surface treatment: Galvanized
Scaffolding Part Type: Scaffolding Screw Jack Base
Application: Base of the scaffolding system
Name: Scaffolding screw jack base
Adjustable base jack material Q235 solid and hollow screw jack base
The steel prop with reasonable and highly capacity,At the construction site,it can effectively
Reduce the amount of prop, so that the workers can have a big operating space and can handling the materials smoothly.
The speed of the set up is more 6 times than a traditional scaffolding and it can also save 70% artificial than the traditional
The steel prop without additional bracing and tripod-type were combined intoan independent prop,stand-alone steel pillars form the basis of the whole structure
Scaffolding Screw Jack with base plate

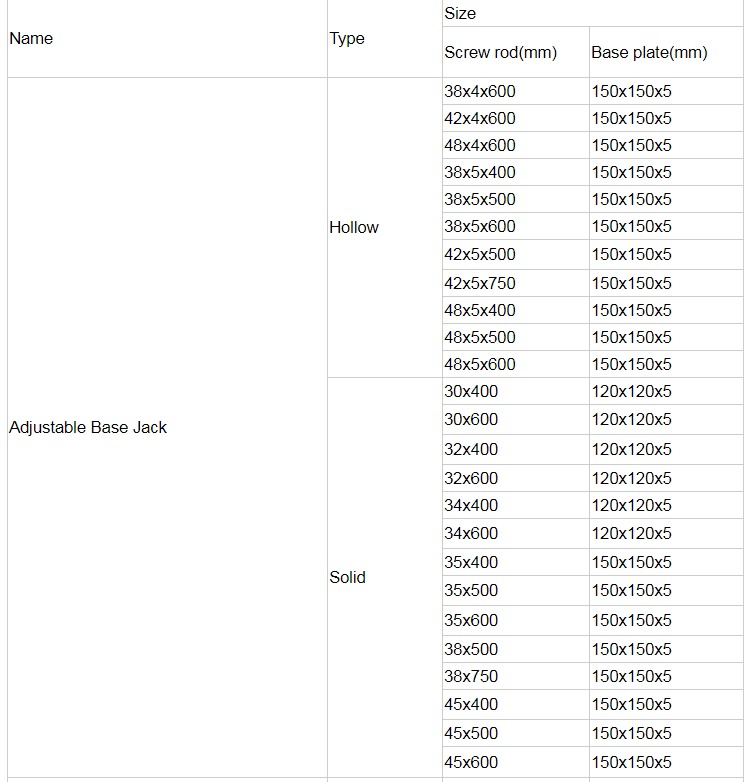

We can manufacture all kinfd of base jack with high quality with lower than market price Solid/Hollow/U head adjustable base jack
We can provide all kinds of base jack with high quality with low price
Material:Q345 for welded pipe and 20# for seamless pipe
Rigid base plate:6mm*150mm*150mm,6mm*140mm*140mm
Adjust length from 225mm to 550mm
Produced in our own factory ,can control the quality much better samples are available
Performance:Good bearing capacity,durable&stable
These adjustable bases give stability to the structure with desired adjustments at the base.
Base Jack used as the base of the scaffolding system,to adjust the rough ground into the same level,and stablized sysytem.
Swivel jacks should be anchored to the structure surface or restrained.Anchors,
bolts or restraints must hold 4 times the shear force that will be applied on the slope.If the angle will exceed 45°consult a professional Enginner before erecting your structure.
