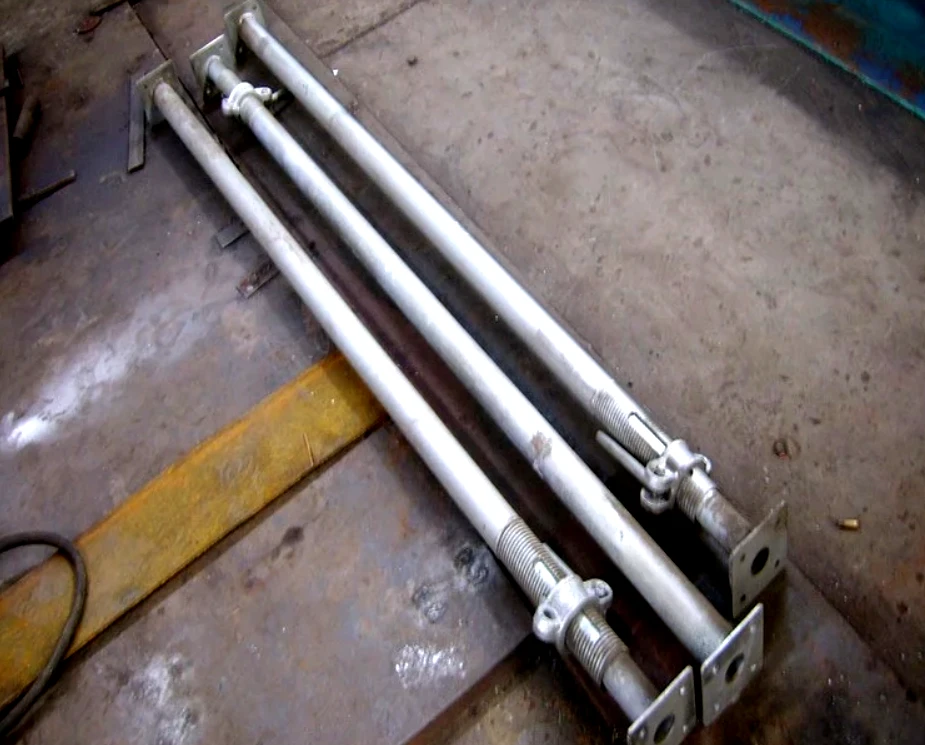

Building support and construction tools Shoring props adjustable steel prop
|Album||View larger image|
|Color ：||As customer ruquestment|
|Surface treatment:||Hot Dip Galvanized|
|FOB port||Tianjin port|
|Terms of Payment||L/C, T/T|
Place of Origin: Tianjin, China
Brand Name: Steel props
Model Number: Props
Surface treatment: Hot Dip Galvanized
Material: Steel Q235
Scaffolding Part Type: Shore Post
Name: Adjustable Steel Post Shore
Advantage: Shoring System
Usage: Building Project
Adjustable steel prop ! templates prop as building construction tools and equipment
1.A complete set of adjustable scaffolding steel props consists of bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate and the accessories of folding treipod, head jack
*surface dealing:painting, galvanized, powder coated
*base:square, U head, flower and so on
*Pin:G pin, rope pin,line pin.
*Nut:cup-nut, usual nut
2.Adjustable scaffolding steel props is used for inside concrete slab supporting, it is more stable and reliable.
3.Adjustable scaffolding steel props is easy to assemble and dismantle; it can be adjusted to any length within its range.
Adjustable height galvanized steel prop for formwork prop
Steel prop are widely used in different supporting areas.Slab formwork and table formwork with its high loading capicity may meet maximum stability for your site jobs.Slab thickness up to 300mm.
1.Diameter of inner tube:40mm,48mm
2.Diameter of outer tube:48mm ,56mm,60mm
3.Wall thicknes:1.6mm,1.7mm,1.8mm,2mm etc.
4.Adjustable length: Heavy duty 1800mm-3200mm,2100-3400mm,2200mm-3900m 2200mm-4000mm,3000-5000mm,3500mm-4000mm etc； Light duty:1600mm-3000mm,1800mm-3500mm,2000-3500mm etc.
6.Shape of base plate:flower or square
7.Surface:paint,hot dipped galvanized,pre-galvanized,electrical galvanized
8.Type:With hands cup or open thread
