Scaffolding Construction Kwikstage Scaffolding

Scaffolding Construction Kwikstage Scaffolding

Scaffolding Construction Kwikstage Scaffolding
Scaffolding Construction Kwikstage ScaffoldingScaffolding Construction Kwikstage ScaffoldingScaffolding Construction Kwikstage ScaffoldingScaffolding Construction Kwikstage ScaffoldingScaffolding Construction Kwikstage Scaffolding
CategoriesKwikstage
AlbumView larger image
Brandscaffoldingplus
Color:Silver
Material:(48.3mm x 3.8mm, Q235, Painting)
Length:0.5m-4.0M /0.3-2.4M
Surface treatment:Painted or Hot Dip Galvanised
FOB portTianjin port
Terms of PaymentL/C, T/T
Download DOC
Update Time2019-05-23
Detail Information
Size:
customized
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
by steel pallet

Galvanized Steel Widely Used Kwikstage Scaffolding with Best Quality


Kwikstage scaffolding feature

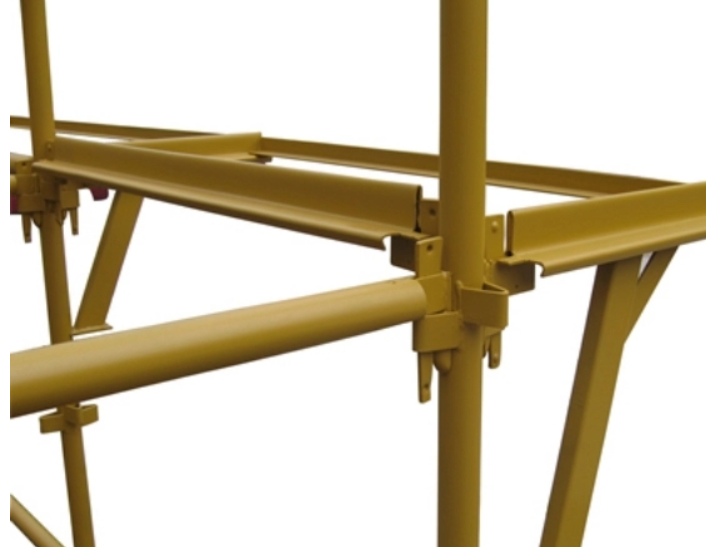

Kwikstage is a versatile and heavy duty modular scaffold system. It is the most common method of access for work at heights on Residential, Commercial & Industrial building projects around the world.

Kwikstage comprises of a vast array of components that when used in conjunction with one another, provides an extremely adaptable scaffold solution.

It is critical to the success of any building project that not only is your site safe for trades to work safely at height, but also the scaffold system is built correctly to provide the most effective access for trades to work quickly and efficiently. Kwikstage scaffold is one of the best way to satisfy WorkSafe regulations as well as provide the best access for all trades working at height.

Kwikstage scaffold can be used for all external works at height, incuding brickwork, rendering, carpentry & cladding installation. Safety provisions can also be made to provide roof guardrails for plumbers, gutter & facia installation.



All Kwikstage scaffold components are available in Painted or Hot Dip Galvanised to suit your environmental needs.



Specification

Kwikstage Scaffolding Standard
(48.3mm x 3.8mm, Q235, Painting)
DescriptionWeight
Kwikstage Standard 500mm3.6kg
Kwikstage Standard 1000mm6.5kg
Kwikstage Standard 1500mm8.8kg
Kwikstage Standard 2000mm11.7kg
Kwikstage Standard 2500mm14.5kg
Kwikstage Standard 3000mm17.5kg



Kwikstage Scaffolding Ledger
(48.3mm x 3.0mm, Q235, Painting)
DescriptionWeight
Kwikstage Ledger 560mm2.4kg
Kwikstage Ledger 760mm3.3kg
Kwikstage Ledger 812mm3.7kg
Kwikstage Ledger 1270mm5.3kg
Kwikstage Ledger 1829mm6.9kg
Kwikstage Ledger 2438mm8.9kg



Kwikstage Scaffolding Diagonal Brace
(48.3mm x 3.0mm, Q235, Painting)
DescriptionWeight
Kwikstage Diagonal Brace 1300mm6kg
Kwikstage Diagonal Brace 1700mm7.9kg
Kwikstage Diagonal Brace 2000mm8.5kg
Kwikstage Diagonal Brace 2400mm9.7kg
Kwikstage Diagonal Brace 2500mm10.1kg
Kwikstage Diagonal Brace 2700mm11kg
Kwikstage Diagonal Brace 2900mm11.7kg
Kwikstage Diagonal Brace 3200mm12.7kg
Kwikstage Diagonal Brace 3600mm14.3kg

Every size wo can produce for you.



Kwikstage scaffolding advantage

1.Fast speed of erection and stripping,Kwikstage Scaffolding maximumly saves time and labour.

2.Versatile in different heights and sizes,Kwikstage Scaffolding  can almost meet requirements of any constructions.

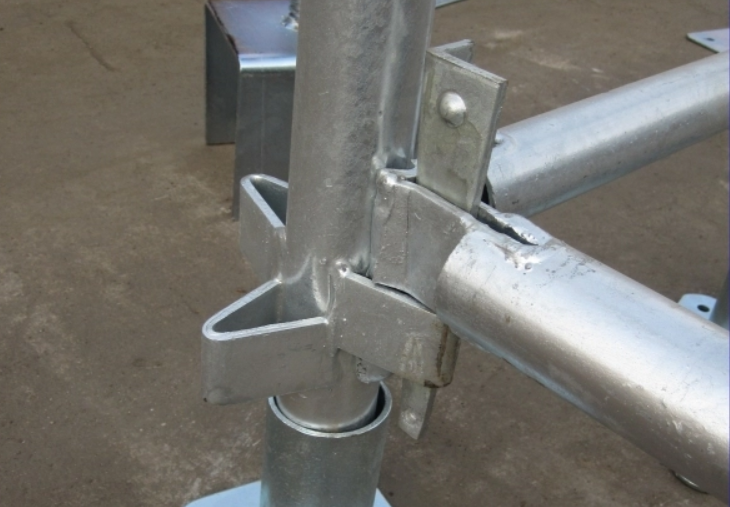

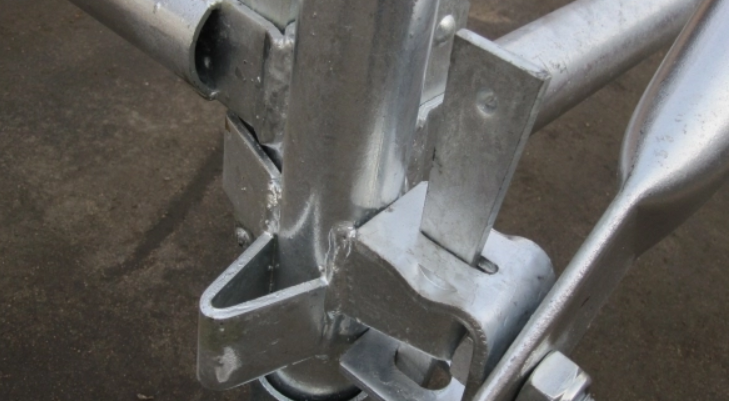

3.Flexible wedge lock connection,Kwikstage Scaffolding can be used on uneven ground.

4.Kwikstage Scaffolding provides easy access with platform and ladder when used for exterior walls.

5.Kwikstage Scaffolding can also be used to suppor floor slab in conjunction with beam and formwork.
