Steel Formwork

Steel Formwork

Steel Formwork
Steel FormworkSteel FormworkSteel FormworkSteel FormworkSteel Formwork
CategoriesFormwork
AlbumView larger image
Brandscaffoldingplus
Color:Red/ white
Material:Q235 Steel
Length:600-1800mm
Width:100mm-600mm
Application:Steel Formwork for Concrete Construction
FOB portTianJin port
Download DOC
Update Time2019-08-20
Detail Information
Quick Details
Place of OriginTianjin, China (Mainland)
Brand Name:  TIANDI  Steel formwork
Model Number:  MF 0002785 Steel formwork
Material:  Q235 Steel
Length:  600-1800mm
Width:  100mm-600mm
Thickness:  3-6MM
Heigh:  55mm
Color:  Red/ white
Accessories:  Screw/NUT/ U CLIP
Certificate:  SGS/ISO
Application:  Steel Formwork for Concrete Construction
Reusable times:  more than 300times
Supply Ability
Supply Ability:  100000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
steel formwork packaging:  tied with steel strip, or as customer request, One 20' container can load 20 tons
Port:  Tianjin China

Product Description
Details of Concrete Metal Formwork/Steel Formwork

1.Concrete metal formwork is made of Q235 steel plate which is heavy/light duty formwork system for concrete wall, beam, slab and column.

2.There are some ribs in the middle of metal formwork which can strengthen the  formwork more steady.

3.Coined edge can help to form a perfect concrete finish without bubbles.

4.Metal formwork is spray painted to against rustiness which can be reusable for many times.

5.Metal formwork is the all-round panel for many construction areas.

Usage

Ideal for all big and small construction sites’ requirements
Metal Formwork Features:

Strong build : to support heavy weight and high quality finish
compatible : compatible to suit any flat surface architectural and structural features
Recyclable : can be 100% recyclable

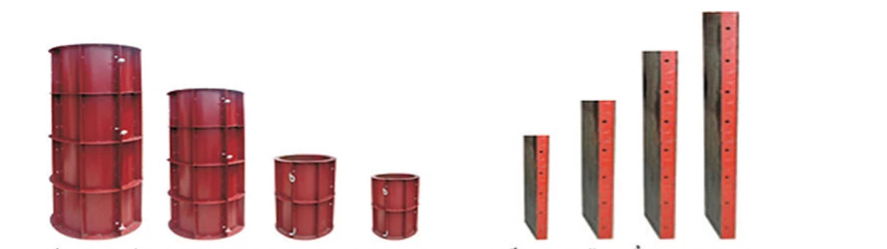

Formwork Sizes
Flat steel concrete formwork
CodeLength(mm)Width(mm)Height(mm)Thickness(mm)Surface treatWeight(kg)
FF1800-6001800600503painted40.98
FF1800-4501800450503painted31.26
FF1800-3001800300503painted21.55
FF1800-2001800200503painted14.37
FF1500-6001500600503painted34.27
FF1500-4501500450503painted26.14
FF1500-3001500300503painted18.02
FF1500-2001500200503painted12.01
FF1200-6001200600503painted27.55
FF1200-4501200450503painted21.02
FF1200-3001200300503painted14.48
FF1200-2001200200503painted9.66
Corner Angle concrete Formwork
CodeLength(mm)Flange height(mm)Thickness(mm)Surface treatWeight(kg)
FC1800180050*503painted4.45
FC1500150050*503painted3.71
FC1200120050*503painted2.9 7
External Corner concrete Formwork
CodeLength(mm)Flange height(mm)Thickness(mm)Surface TreatmentWeight(kg)
FEX18001800100*1003painted16.35
FEX15001500100*1003painted13.76
FEX12001200100*1003painted11.17
Internal Corner concrete Formwork
CodeLength(mm)Flange Height(mm)Thickness(mm)Surface Treatment(mm)Weight(kg)
FIN18001800100*1003painted15.21
FIN15001500100*1003painted12.76
FIN12001200100*1003painted10.31

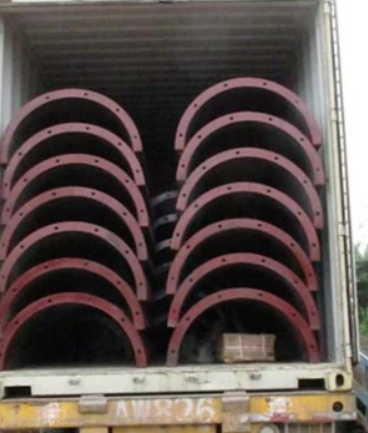

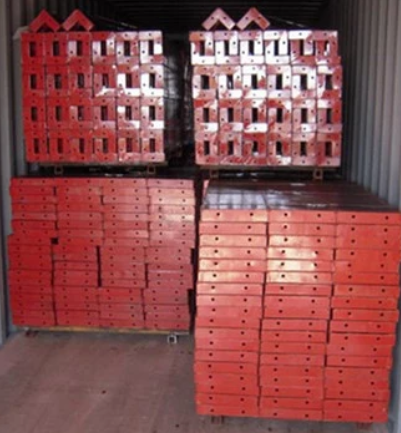

Packaging & Shipping

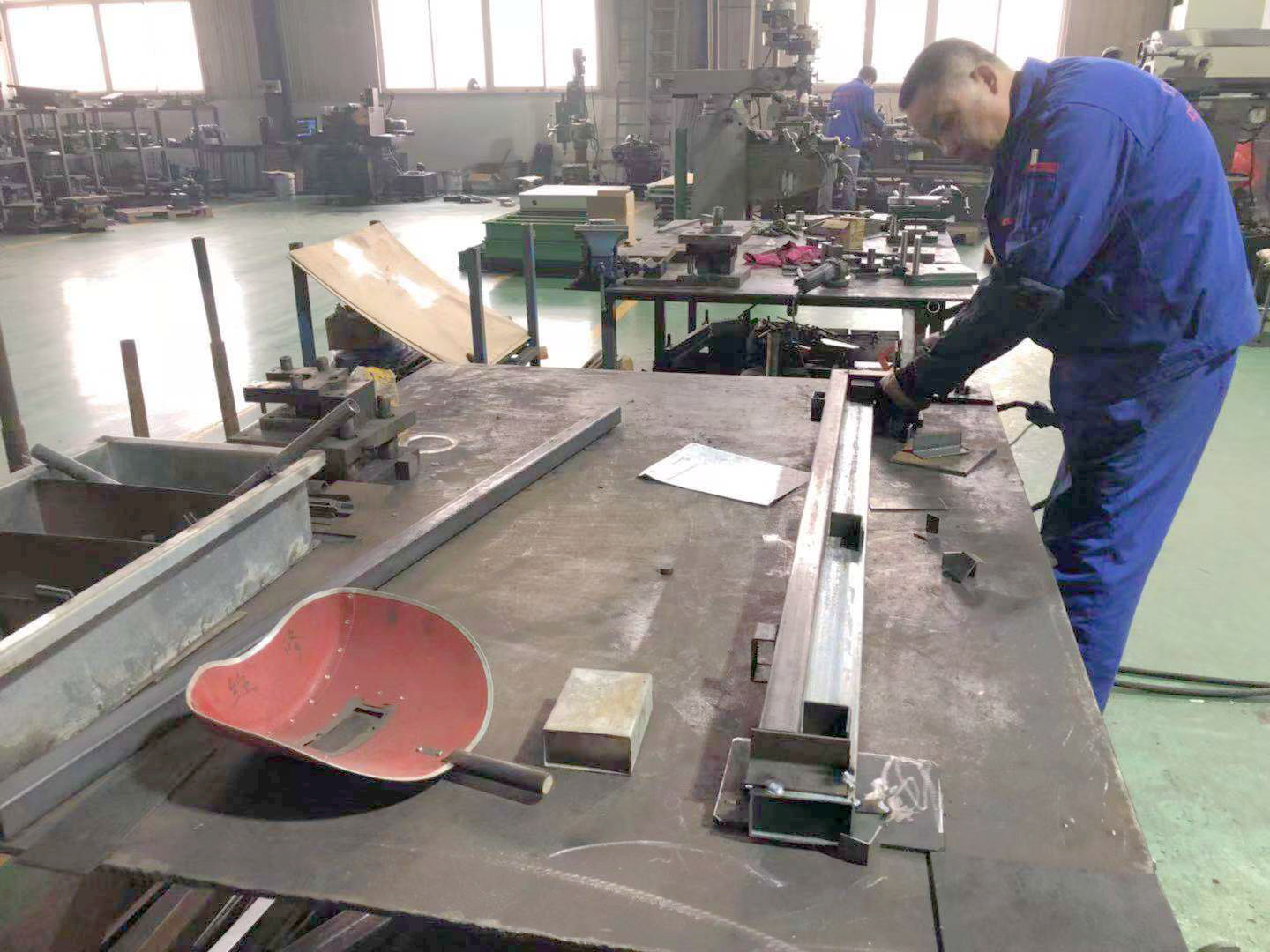

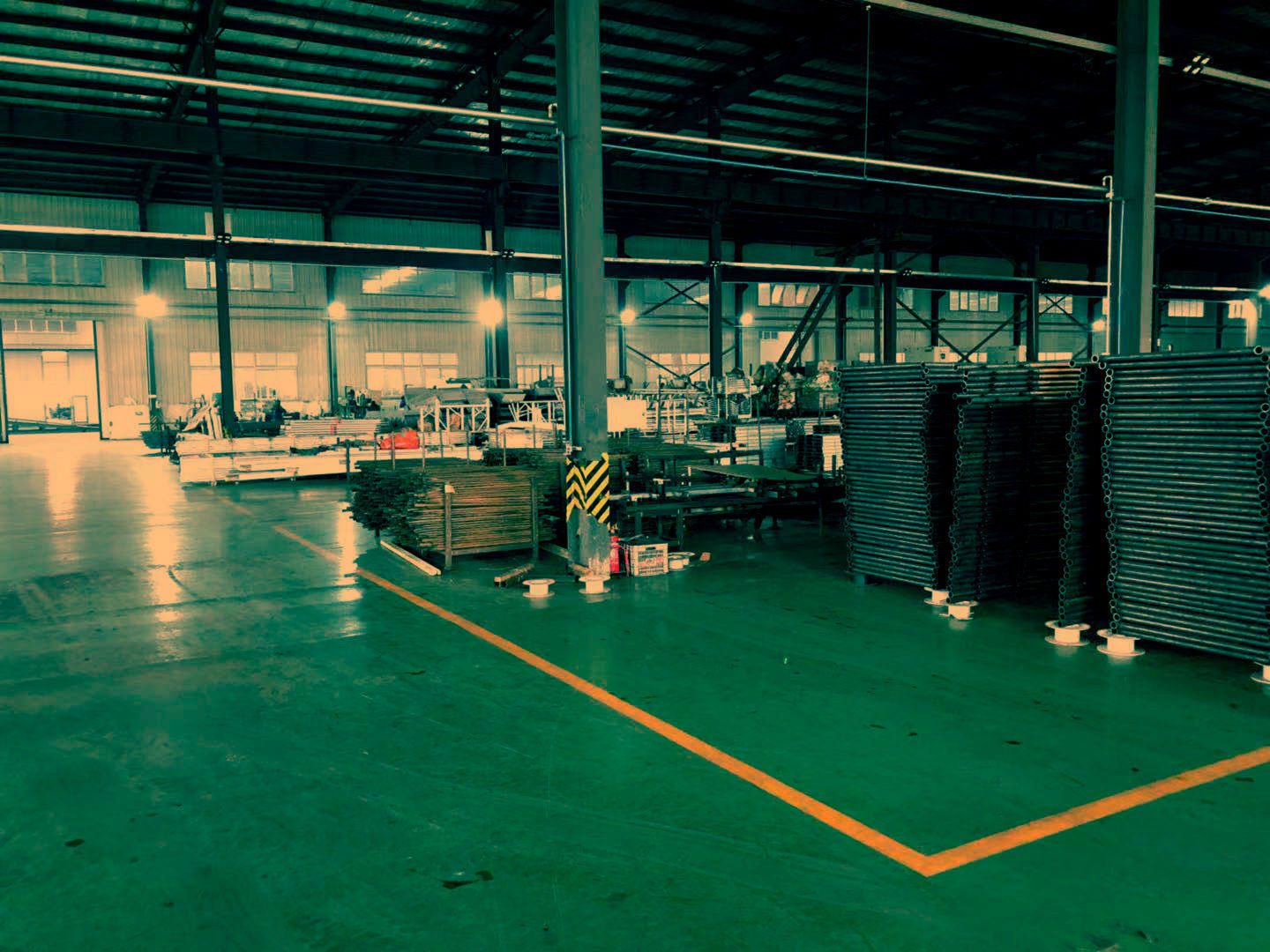

WorkShop
