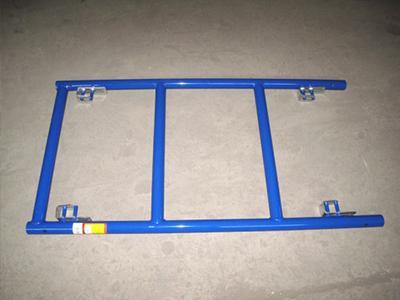

Scaffolding Ladder Frame - Slide Lock
Description

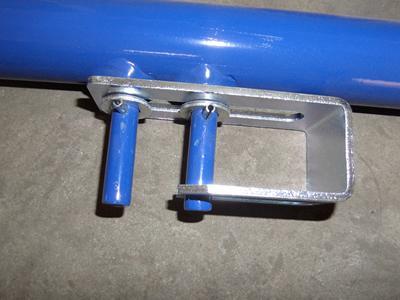

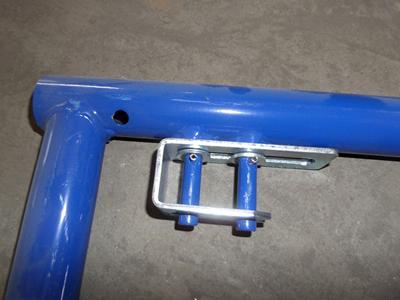

Our scaffolding ladder frame with fast lock has a stable structure and it can be used as a ladder to allow up and down movement on the scaffolding structure. Equipped with a fast lock, this ladder frame is characterized by simple assembly, better load bearing capacity and a high safety factor.
This ladder frame is powder coated or hot-dip galvanized.
Materials
Q235steel or Q345 steel.
Parameters
Item No.DescriptionWeight(KG)Weight(LBS)
LF023S2'x3' Ladder Frame with slide lock8.9419.70
LF024S2'x4' Ladder Frame with slide lock10.4022.90
LF025S2'x5' Ladder Frame with slide lock12.9428.50
LF0264F2'x6'4'' Ladder Frame with slide lock16.0035.30
