Tiandi High Quality Painted HDG Cuplock Scaffolding Standard Ledge for Building Construction

Tiandi High Quality Painted HDG Cuplock Scaffolding Standard Ledge for Building Construction

Tiandi High Quality Painted HDG Cuplock Scaffolding Standard Ledge for Building Construction
Tiandi High Quality Painted HDG Cuplock Scaffolding Standard Ledge for Building ConstructionTiandi High Quality Painted HDG Cuplock Scaffolding Standard Ledge for Building ConstructionTiandi High Quality Painted HDG Cuplock Scaffolding Standard Ledge for Building Construction
CategoriesCuplock
AlbumView larger image
Brandscaffoldingplus
FOB porttianjin port
Terms of PaymentL/C, D/P, T/T
Download DOC
Update Time2018-12-18
Detail Information

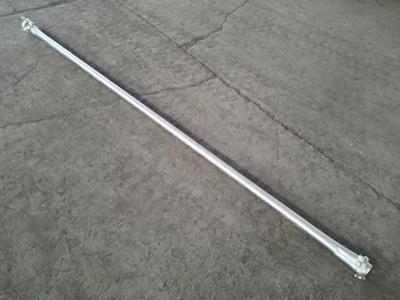

Cuplock Diagonal in Scaffolding Cuplock System
Description

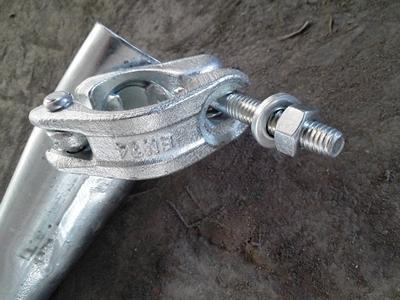

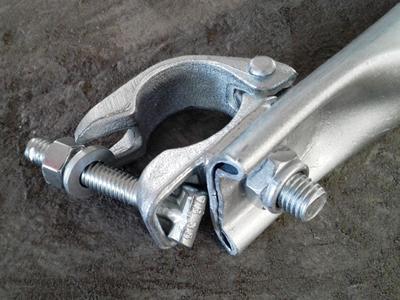

Insert the swivel ledger blades at both ends of the cuplock diagonal into the bottom cup of cuplock standard. Press and rotate the top cups, and use the stop pin to fix the top cups. Connecting the cuplock diagonal with the vertical cuplock pole is convenient, forming a complete cuplock system with the cuplock standard and horizontal components. The diagonal brace provides reinforcement and it can be used as a handrail. The cuplock diagonal is hot-dip galvanized.
Material
Q235 steel
Parameters
Item No.DescriptionWeight
CCB40Cuplock Swivel Clamp Brace 4'/1.22m7.4
CCB50Cuplock Swivel Clamp Brace 5'/1.52m8.5
CCB70Cuplock Swivel Clamp Brace 7'/2.13m10.06
CCB80Cuplock Swivel Clamp Brace 8'/2.44m10.4
CCB82Cuplock Swivel Clamp Brace 8'2"/2.50x2m10.6
CCB90Cuplock Swivel Clamp Brace 9'/2.74m11.2
CCB100Cuplock Swivel Clamp Brace 10'/3.05m11.8
