Walking through painting ladder frame system H frame scaffolding

Walking through painting ladder frame system H frame scaffolding

Walking through painting ladder frame system H frame scaffolding
Walking through painting ladder frame system H frame scaffoldingWalking through painting ladder frame system H frame scaffoldingWalking through painting ladder frame system H frame scaffolding
CategoriesScaffolding Frame
AlbumView larger image
Brandscaffoldingplus
FOB porttianjin port
Terms of PaymentL/C, D/P, T/T
Download DOC
Update Time2018-12-18
Detail Information

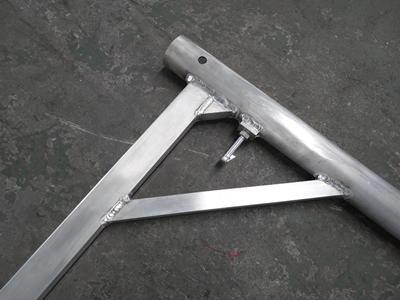

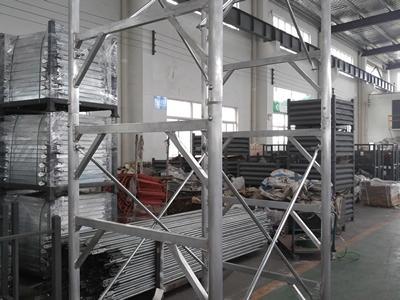

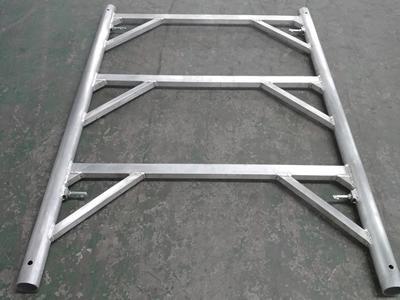

20K Scaffolding Aluminum Shoring Frame
Description
The 20K scaffolding aluminum shoring frame weighs one third that of the general iron frames, making it easy to lift and install. Its strength is also 3 times that of common iron frames and it has a safety load of 20K (9072kg). The loading capacity of a single frame leg is twice as much as that of common steel shoring (7500 lbs./3400kg at 9'6'').
Material
AL 6061-T6
Parameters
Item NoDescriptionWeight (Kgs)Weight (LBS)
FS01444'x 4' Aluminum Shoring Frame13.0128.65
FS01454'x 5' Aluminum Shoring Frame16.335.9
FS01464'x 6' Aluminum Shoring Frame18.540.75
FS01474'x 8' Aluminum Shoring Frame2657.26
FS014830″ Screw Jack Base Plate6.514.32
FS0149U-head Screw Jack7.716.96
FS0150Aluminum Frame Coupling Pins0.81.76
FS0151R Clips0.10.22
