ringlock scaffolding system used in project with good quality

ringlock scaffolding system used in project with good quality

ringlock scaffolding system used in project with good quality
ringlock scaffolding system used in project with good qualityringlock scaffolding system used in project with good qualityringlock scaffolding system used in project with good quality
CategoriesCuplock
AlbumView larger image
Brandscaffoldingplus
FOB porttianjin port
Terms of PaymentL/C, D/P, T/T
Download DOC
Update Time2018-12-18
Detail Information

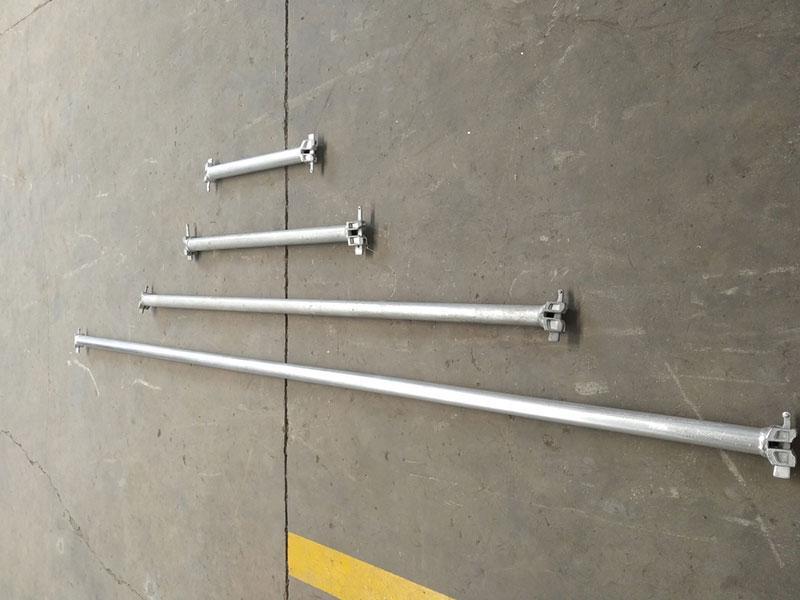

Ringlock Horizontal in Ringlock System
Description

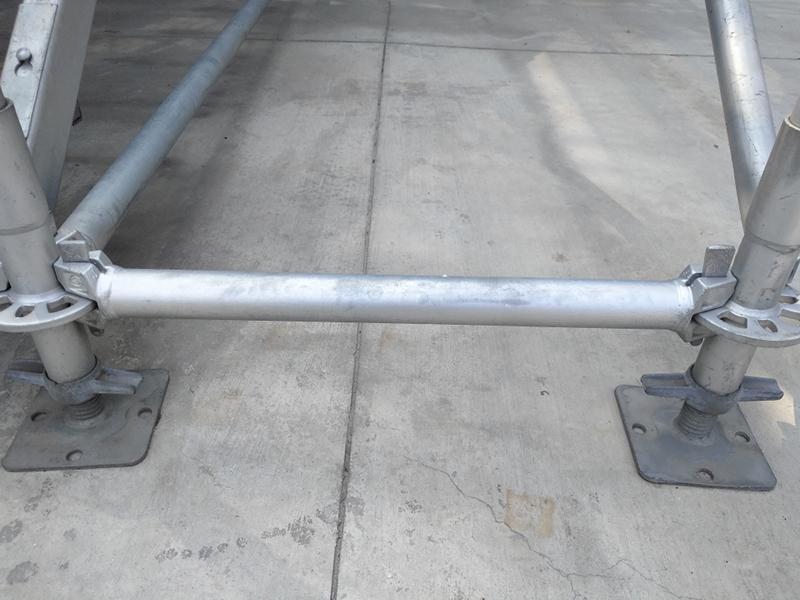

Ringlock horizontal also plays a supporting role in scaffolding support. The shorter horizontal bar is used as the horizontal support for a plank or guardrail. Insert the plugs at both ends of the horizontal bar into their corresponding taper holes within the standard rosettes, then hammer them together tightly. It is easy to connect the horizontal bar to the vertical bar, thus creating a full ringlock system with a vertical bar and diagonal brace. The horizontal bar is also hot dip galvanized.
Material
Q235 steel or Q345 steel
Parameters
Item No.DescriptionWeight
RH202' Horizontal2.81
RH303' Horizontal3.88
RH404' Horizontal4.99
RH505' Horizontal6.06
RH606' Horizontal7.17
RH707' Horizontal8.27
RH808' Horizontal9.34
RH909' Horizontal10.43
RH10010' Horizontal11.52
RH0730.73M Horizontal3.24
RH1091.09M Horizontal4.53
RH1401.40M Horizontal5.63
RH1571.57M Horizontal6.24
RH2072.07M Horizontal8.02
RH2572.57M Horizontal9.81
RH3073.07M Horizontal11.59
