Q345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for Construction

Q345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for Construction

Q345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for Construction
Q345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for ConstructionQ345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for ConstructionQ345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for ConstructionQ345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for ConstructionQ345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for Construction
CategoriesRinglock
AlbumView larger image
Brandscaffoldingplus
FOB portport of tianjin
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-12-18
Detail Information
Q345B/235B Hot Dipped Galvanized Safey Scafolding Ringlock System for Construction

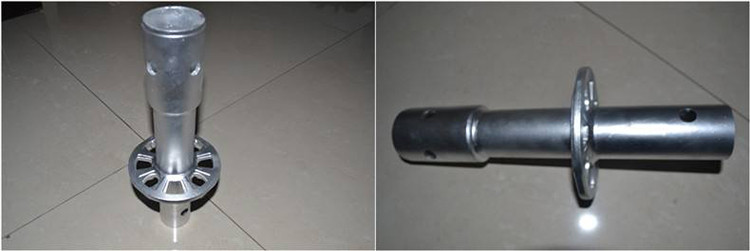

Ringlock scaffolding uses the specially designed rosette and self-locked wedge pin, you just need to put the pin into the rosette and then it will be locked. The Axial bearing capacity design makes the scaffolding tower safer. Even one worker can assemble and disassemble it easily with a hammer, so it is definitely saving a lot of time and manpower.

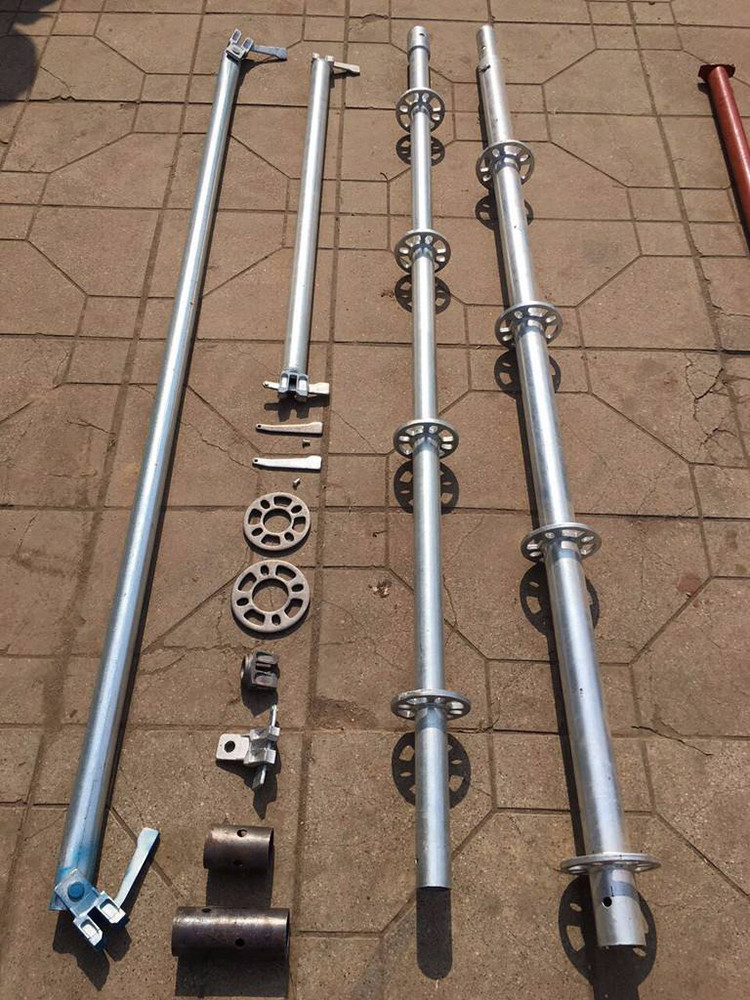

Part NameMaterialTechnologyOutter DiameterThicknessRemarks
Ringlock StandardsQ345BHDG or power coated48.3mm/60mm3.25mmsize and length can be customized

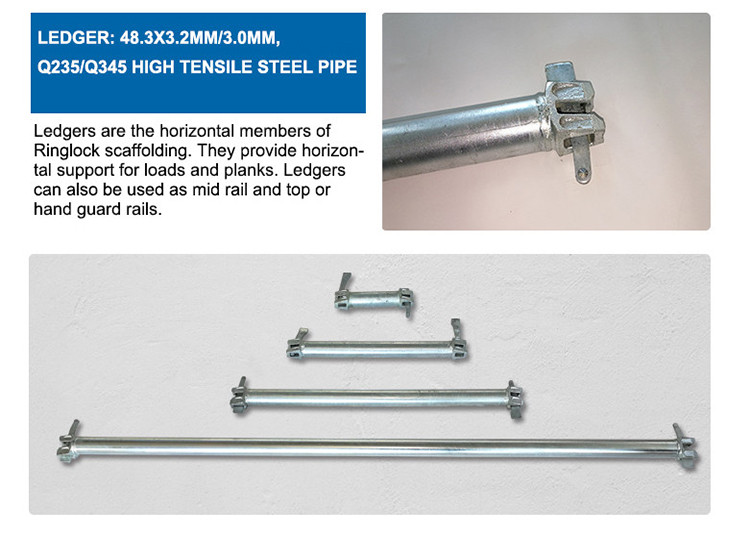

Ringlock LedgersQ235BHDG or power coated48.3mm3.2mmsize and length can be customized

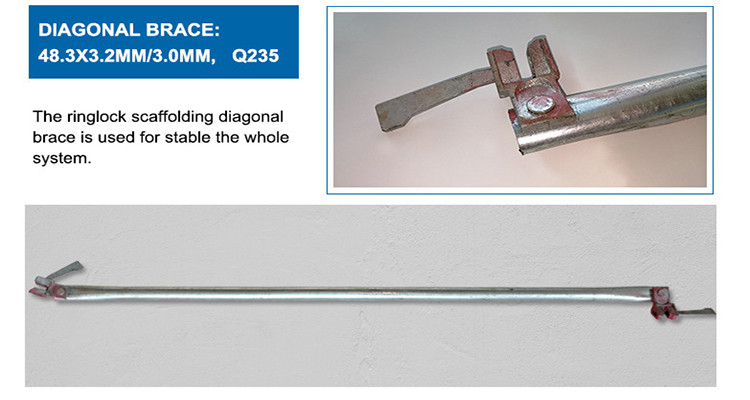

Diagonal BraceQ235BHDG or power coated48mm2.75mmsize and length can be customized
Ringlock PlankQ235BHDG or power coatedNANAsize can be customized
Ringlock Jack BaseQ235BHDG or power coatedNANABase plate: 120*120*2.5mm; screw: 700*38mm


1. High stability: more stable with the diagonal brace fixed on it. The big holes in the ringlock rosette are used for the lock pin of the diagonal brace

2. Long life span: Scaffolding parts are connected with welding technique and ensure good cracking and deformation resistance

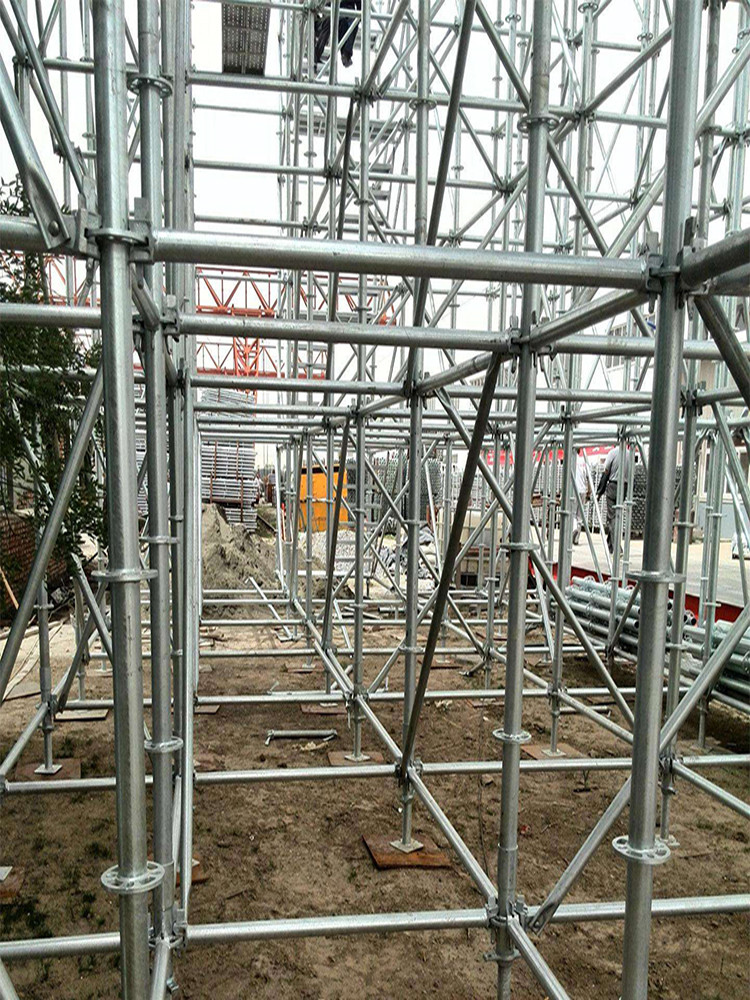

3. Multi-function: suitable for outdoor and indoor building, bridge, tunnel, hull building and great span construction, etc

4. Easy assembling and disassembling

5. Tube size and thickness can be customzied as per customer's requirements
