Scaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jack

Scaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jack

Scaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jack
Scaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jackScaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jackScaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jackScaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jackScaffolding adjustable screw jack with swivel base plate/Adjustable hollow U-head steel scaffolding screw jack
CategoriesJack base& U-head jack
AlbumView larger image
Brandscaffoldingplus
FOB portport of tianjin
Terms of PaymentL/C, T/T
Update Time2018-12-18
Detail Information
1.Scaffolding adjustable screw jack with swivel base plate

 A. Product info.

  1. Material: Q235 round bar/ round tube
  2. Diameter: 30mm/32mm/38mm
  3. Adjustable Length: from 100mm to 1000mm as requestment.
  4. Type: Solid /hollow
  5. Surface treatment: electro galvanized
  6. Main components: Threaded bar, cast nut and base pate
  7. Certificate: ISO 9001, SGS
  8. Package: By Pallet suitable for sea transportation or as request
  9. OEM service available
  10. Sample are available.

B. Main Components and Size



Name



Description



Specification

Unit Weight kg/pc



Hollow

Jack Base

Material: seamless pipe or welded pipe

Surface: painted, electrol galvanized, hot dip galvanized

38*5*600;140*140*5mm

3.59

38*5*600;150*150*6mm

3.88

48*5*600;140*140*6mm

4.55

48*5*600;150*150*8mm

5.04







Solid

Jack base





Material: Q235 round bar

Surface:painted, electrol galvanized, hot dipped galvanized

30*600mm;120*120*4mm

3.61

30*600mm;140*140*4mm

3.78

32*600mm;120*120*4mm

4.03

32*600mm;140*140*4mm

4.20

34*600mm;140*140*4mm

4.66

34*600mm;150*150*6mm

5.10

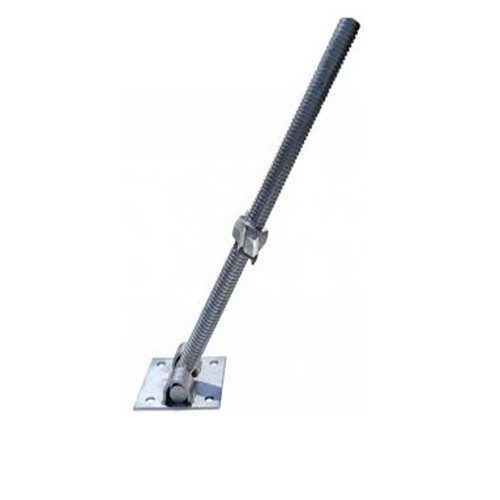

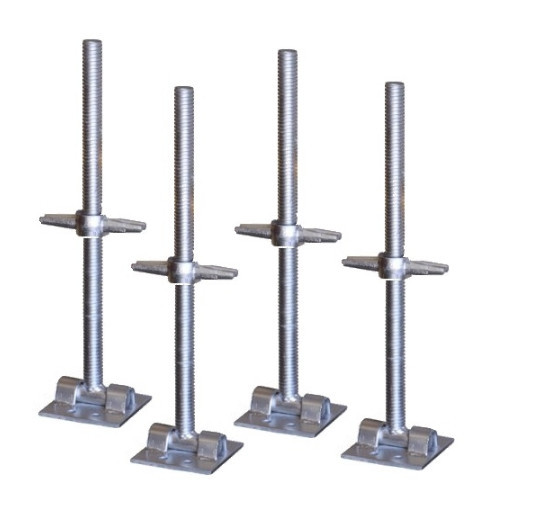

C. Photoes of  screw jack with swivel base plate

Screw jack with swivel base plate is accessory of the scaffolding , mainly used to regulate the level of the scaffolding.

2.Adjustable hollow U-head steel scaffolding screw jack

A. Scafflding srew jack information

  1. Material: Q235 steel pipe
  2. Diameter: 38mm
  3. Adjustable Length: from 100mm to 1000mm as requestment.
  4. Type: hollow
  5. Surface treatment: electro galvanized
  6. Main components: Threaded bar, cast nut and base pate
  7. Certificate: ISO 9001, SGS
  8. Package: By Pallet suitable for sea transportation or as request
  9. OEM service available
  10. Sample are available.

B. Main Components and Size



Name



Description



Specification

Unit Weight kg/pc



Hollow

Jack Base

Material: seamless pipe or welded pipe

Surface: painted, electrol galvanized, hot dip galvanized

38*5*600;140*140*5mm

3.59

38*5*600;150*150*6mm

3.88

48*5*600;140*140*6mm

4.55

48*5*600;150*150*8mm

5.04







Solid

Jack base





Material: Q235 round bar

Surface:painted, electrol galvanized, hot dipped galvanized

30*600mm;120*120*4mm

3.61

30*600mm;140*140*4mm

3.78

32*600mm;120*120*4mm

4.03

32*600mm;140*140*4mm

4.20

34*600mm;140*140*4mm

4.66

34*600mm;150*150*6mm

5.10

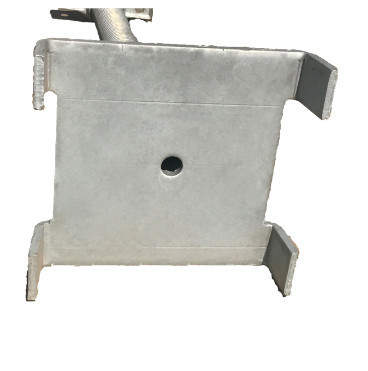

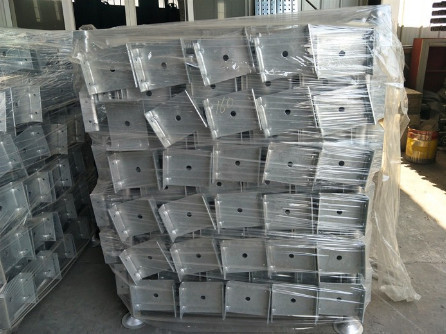

C. Photoes of scaffolding screw jack

Adjustable Screw Jack is accessory of the scaffolding , mainly used to regulate the level of the scaffolding.
