Q345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffolding

Q345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffolding

Q345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffolding
Q345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffoldingQ345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffoldingQ345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffoldingQ345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffoldingQ345 Q235A B 3.2-3.25mm thickness ringlock scaffold / allround scaffolding
CategoriesRinglock
AlbumView larger image
Brandscaffoldingplus
FOB portPort of Tianjin
Terms of PaymentT/T
Download DOC
Update Time2018-12-18
Detail Information
Title:Ringlock
  1. 1.Name: ringlock scaffolding, layher scaffolding, scaffolding multidirectional, rosette scaffolding.
  2. 2.Material: Q235 / Q345 hot dip galvanized steel pipe.
  3. 3.Standard: BS1139, AS/NZS 1576.3.
  4. 4.Type: 48mm system, 60mm system.
  5. 5.Thickness: 2.5mm, 3.0mm, 3.2mm, 3.25mm, etc.
  6. 6.Components: vertical standard, horizontal ledger, diagonal brace, base collar, spigot, base jack, u-head jack, catwalk, staircase, toe board, bracket, etc.
  7. 7.Zinc thickness: more than 80micro, 560g/m2
  8. 8.Lifespan: more than 15 years.
  9. 9.Certificate: SGS, ISO
  10. 10.OEM service: OEM accepted.
  11. 11.Project scaffolding solution: we have a professional engineer team to design according to your projects drawings.
  12. 12.MOQ: 25 metric tons.
  13. 13.Delivery time: 25-30 days.
  14. 14.Sample: sample is available.
  15. 15.Package: by bundle/in pallet for sea transportation
Description:

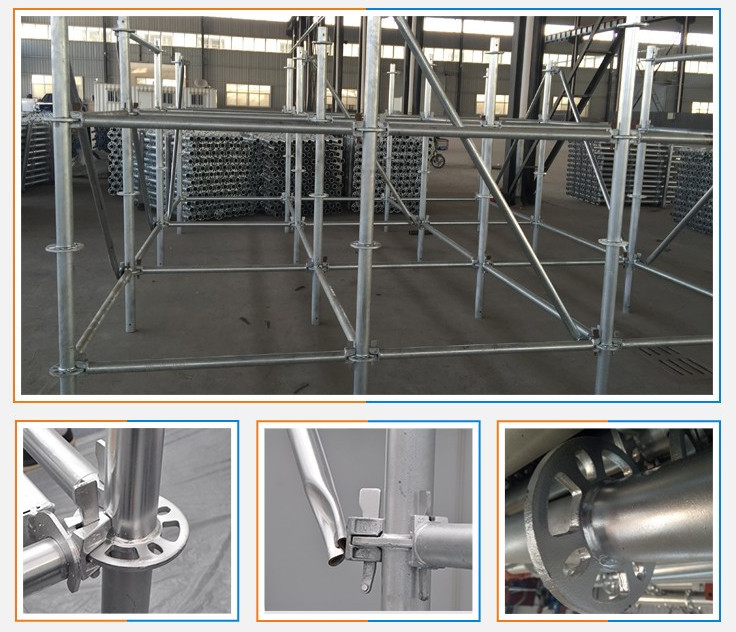

Ringlock is a multi-purpose modular scaffold system which can be used for all forms of access and support structures in the building and construction industries, ship buliding, offshore construction and industrial maintenance. Ringlock scaffold has the following features: Quick erection and dismantling: Ringlock scaffold is all pre-measured and just a hammer is required when erection.
Features:
1) Ringlock Scaffolding Systems are built to be the most reliable and efficient scaffold available
2) Safe and convenient, the Ringlock Scaffolding line includes multiple ledgers, clamps, guardrails, etc.
3) Connectors, stair stringers, steps and adapters. So whether you are in the market for a complete scaffolding system
4) Or just need accessories that are compatible with your current ring lock scaffolding system
5) TIANDI Scaffolding Supply is here to help with your next projects

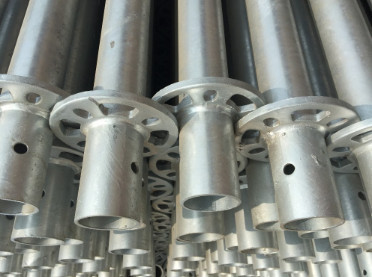

1. Vertical

MaterialQ345
Diameter60&48
Thickness3.2mm
Surface HDG
Length

250mm,500mm,1000m,1500mm,

2000mm,2500mm

Processing

Cutting off, welding, shaping,

galvanizing, packaging

FunctionMain stressed part of scaffold

Adding inner fittings on the upper end to

increase height of scaffold



ModelSpecTexlureWeight(kg)
A-LG-250Φ60*3.2*250Q345B2.65
A-LG-500Φ60*3.2*500Q345B3.75
A-LG-1000Φ60*3.2*1000Q345B6.65
A-LG-1500Φ60*3.2*1500Q345B9.6
A-LG-2000Φ60*3.2*2000Q345B12.5
A-LG-2500Φ60*3.2*2500Q345B15.5
B-LG-250Φ48*3.2*250Q345B1.89
B-LG-500Φ48*3.2*500Q345B2.95
B-LG-1000Φ48*3.2*1000Q345B5.3
B-LG-1500Φ48*3.2*1500Q345B7.64
B-LG-2000Φ48*3.2*2000Q345B9.9
B-LG-2500Φ48*3.2*2500Q345B12.3

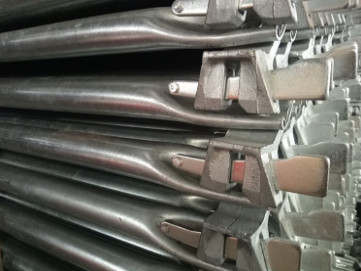

2.Ledger

Material

Q235B

Diameter

48

Thickness

2.5mm

Surface

HDG

Length

300mm,600mm,900mm,1200mm,

1500mm,1800mm,2100mm,

2400mm

Processing

Cutting off, welding, shaping, galvanizing, packaging

Function

Connecting vertical poles to fix the whole scaffold,

keeping it from shaking

Model

 Spec

Texture

Weight(kg)

A-SG-300

Φ48*2.5*240

Q235B

1.4

A-SG-600

Φ48*2.5*540

Q235B

2.3

A-SG-900

Φ48*2.5*840

Q235B

3.2

A-SG-1200

Φ48*2.5*1140

Q235B

4.1

A-SG-1500

Φ48*2.5*1440

Q235B

5

A-SG-1800

Φ48*2.5*1740

Q235B

5.9

A-SG-2100

Φ48*2.5*2040

Q235B

6.8

A-SG-2400

Φ48*2.5*2340

Q235B

7.7

3.Vertical Diagonal Brace

Material

Q235B

Diameter

32

Thickness

2.3mm

Surface

HDG

Length

600*1500,900*1500,1200*1500,

1500*1500,1800*2000,2100*2000

Processing

Cutting off, welding, shaping,

galvanizing, packaging

Function

Connecting vertical poles and ledgers to make the scaffold more stable

Model

 Spec

Texture

Weight(kg)

B-XG-600*1500

Φ33*2.3*1606

Q195

3.92

B-XG-900*1500

Φ33*2.3*1710

Q195

4.1

B-XG-1200*1500

Φ33*2.3*1859

Q195

4.4

B-XG-1500*1500

Φ33*2.3*2042

Q195

4.7

B-XG-1800*2000

Φ33*2.3*2618

Q195

5.7

B-XG-2100*2000

Φ33*2.3*2833

Q195

8.22
