Construction used cuplock scaffolding for sale

Construction used cuplock scaffolding for sale

Construction used cuplock scaffolding for sale
Construction used cuplock scaffolding for saleConstruction used cuplock scaffolding for saleConstruction used cuplock scaffolding for saleConstruction used cuplock scaffolding for saleConstruction used cuplock scaffolding for sale
CategoriesCuplock
AlbumView larger image
Brandscaffoldingplus
FOB portTIANJIN PORT
Terms of PaymentT/T
Download DOC
Update Time2018-12-18
Detail Information
Title:Cuplock

Quick Details

  • Place of Origin: TIANJIN, China (Mainland)
  • Brand Name: TDCL
  • Model Number: Scaffolding System
  • Material: Q195-Q235
  • Surface treatment: Painted, galvanized
  • Emboss: Available
  • Thickness: 2.75-3.5mm
  • Color: Red, blue or as you requirement
  • Application: Outdoor Building Construction
  • Type: Scaffolding Cuplock System
  • Weight: Different specifications different weight
  • Standard:3m,2.4m,2.1m,1.8m,1.5m,1.2m,0.9m,0.6m
  • Ledger: 1.5m,1.2m,0.9m,0.6m,0.3m




Description:

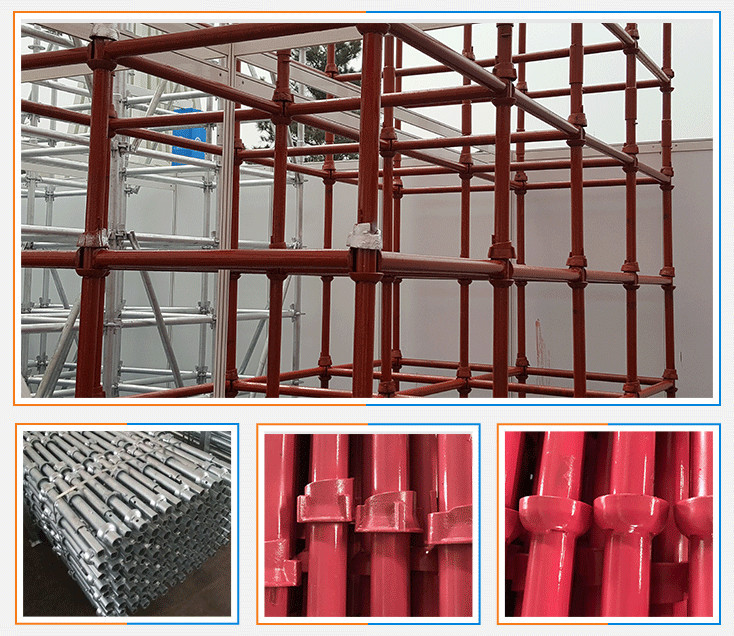

 A unique node point connection allows up to 4 horizontal memebers to be connected with a vertical member in once single action without the use of nuts, bolts or wedges. The locking device is formed by two cups, a fixed bottom cup which is welded to the vertical pipe at the pre-located intervals and a sliding upper cup. The blade ends of the ledger are located into the lower cup, the upper cup is moved down to secure it in place.

1.Standard

ModelSpecification(mm)Theoretical weight(kg)Thickness
TD-60Φ 48.3x3.5x6004.06 2.75-3.5mm
TD-90Φ 48.3x3.5x9005.6
TD-120Φ 48.3x3.5x12007.41
TD-150Φ 48.3x3.5x15008.91
TD-180Φ 48.3x3.5x180010.61
TD-210Φ 48.3x3.5x210012.21
TD-240Φ 48.3x3.5x240014.02
TD-300Φ 48.3x3.5x300017.31
TD-220Φ 48.3x3.5x220010.453.5mm
TD-240Φ 48.3x3.5x240011.223.5mm

2. Ledger

ModelSpecification(mm)Theoretical weight(kg)Thickness
HG-30Φ 48.3x3.5x3001.672.75-3.5mm
HG-60Φ 48.3x3.5x6002.28
HG-90Φ 48.3x3.5x9003.97
HG-120Φ 48.3x3.5x12005.12
HG-150Φ 48.3x3.5x15006.28
HG-180Φ 48.3x3.5x18007.43
HG-240Φ 48.3x3.5x24009.73
HG-65Φ 48.3x3.5x650 3.02
HG-95Φ 48.3x3.5x9504.17
HG-125Φ 48.3x3.5x12505.32
HG-155Φ 48.3x3.5x15506.48
HG-185Φ 48.3x3.5x18507.63
