High quality construction building cuplock scaffolding
|Album||View larger image|

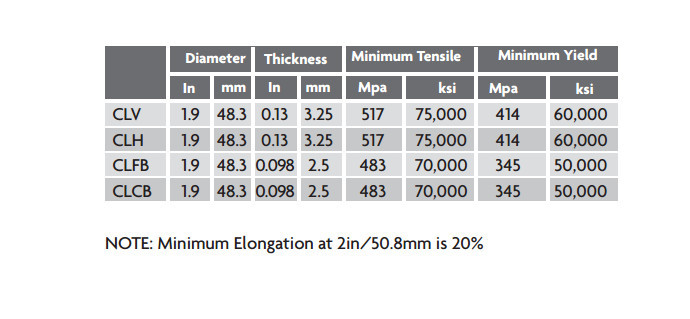

|Material :||Q235 ERW|
|Surface treatment :||Hot-dip galvanized|
|Advantage :||Multi-functional usage、 High capacity load、 Safe and reliable|
|FOB port||Tianjin port|
|Terms of Payment||L/C, T/T|

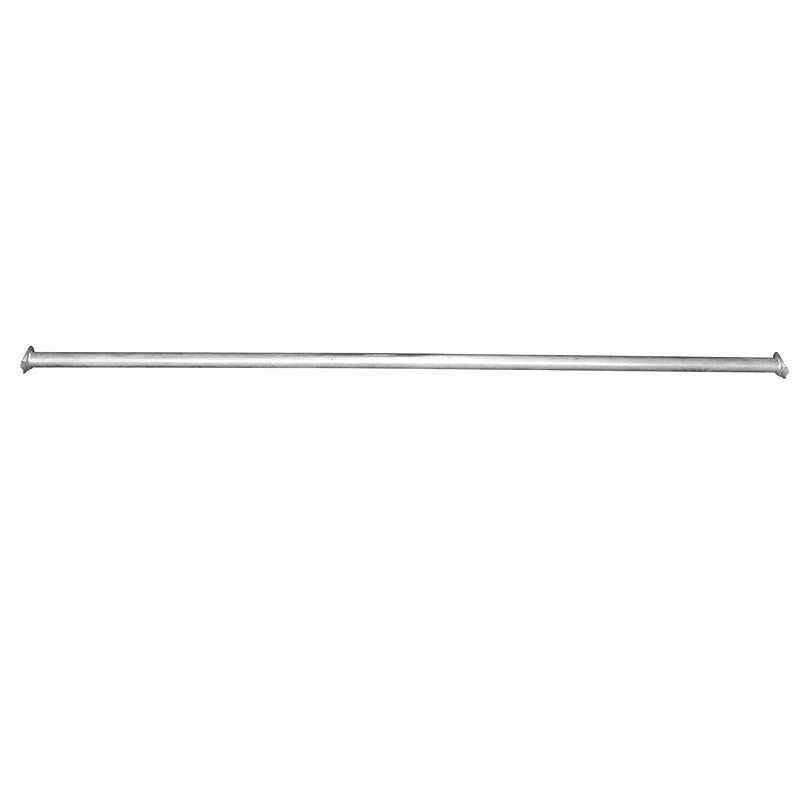

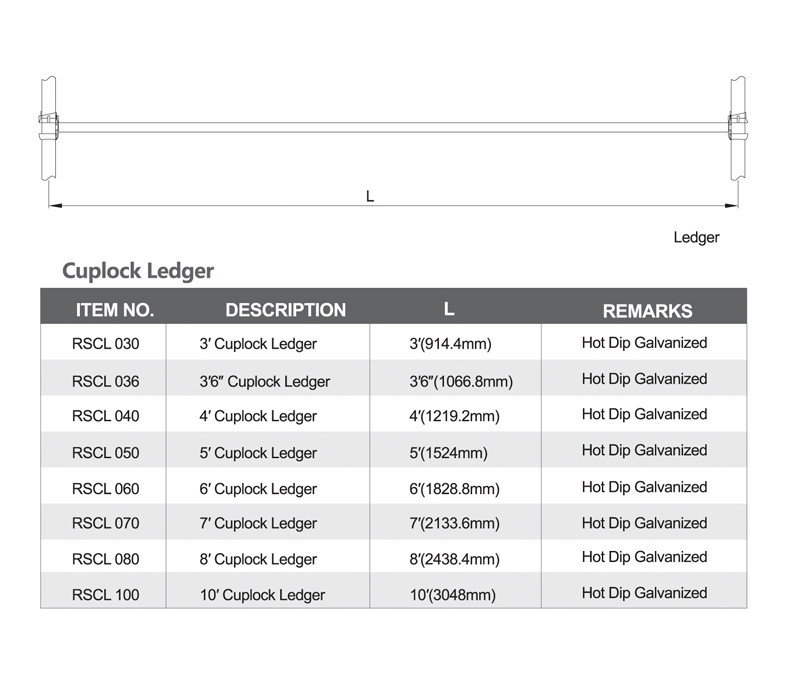

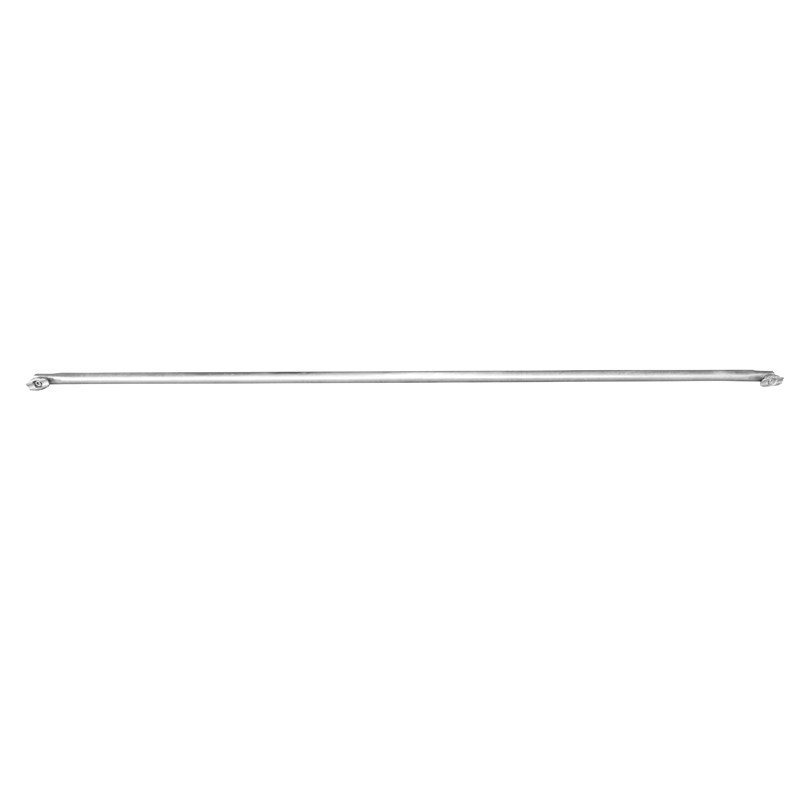

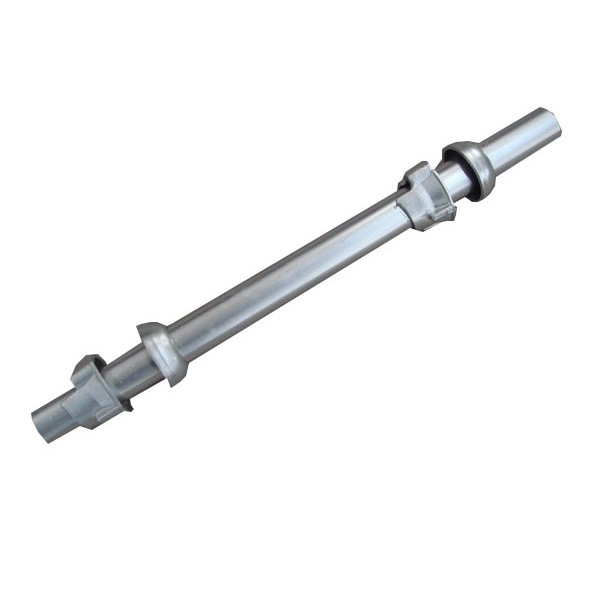

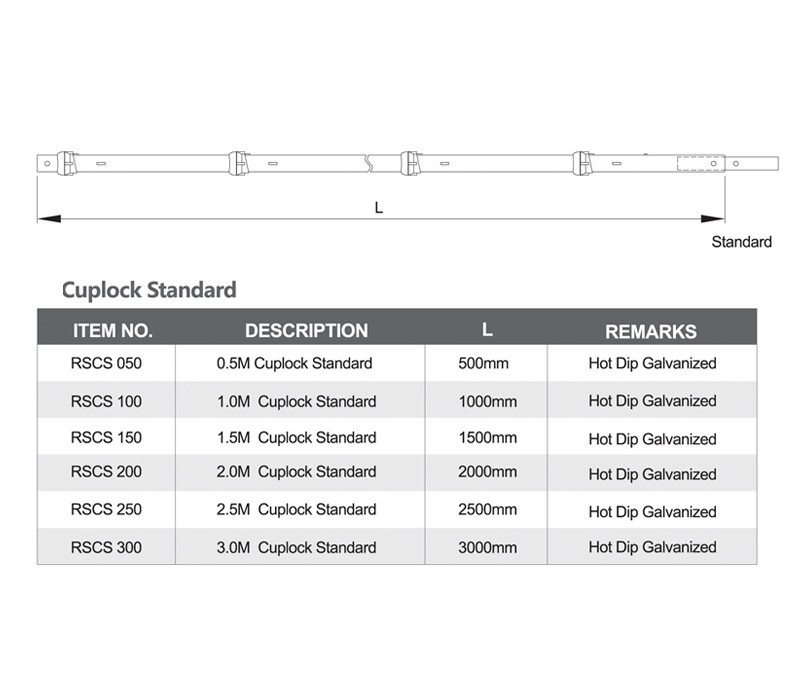

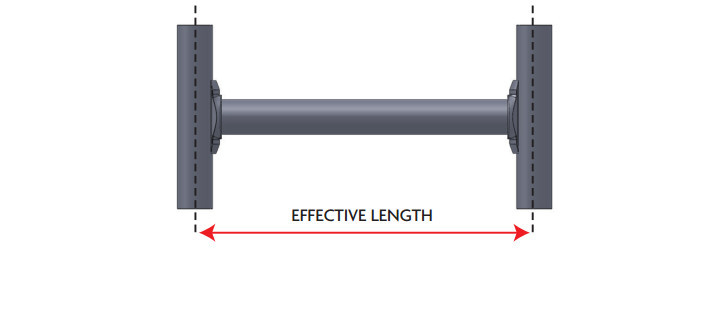

A unique node point connection allows up to 4 horizontal memebers to be connected with a vertical member in once single action without the use of nuts, bolts or wedges. The locking device is formed by two cups, a fixed bottom cup which is welded to the vertical pipe at the pre-located intervals and a sliding upper cup. The blade ends of the ledger are located into the lower cup, the upper cup is moved down to secure it in place.

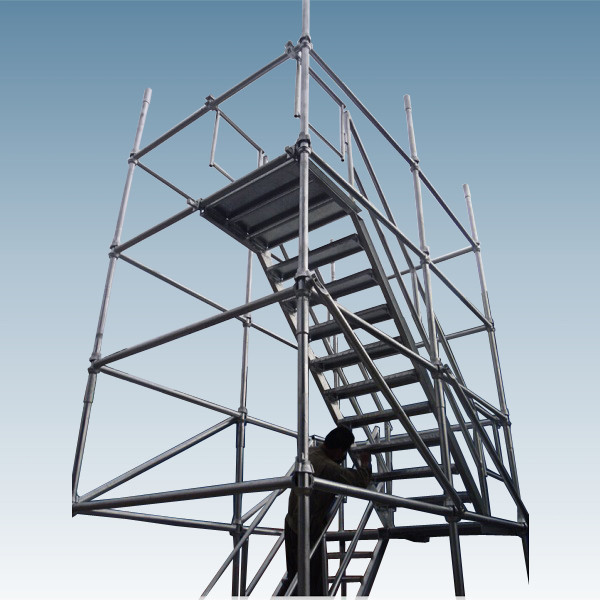

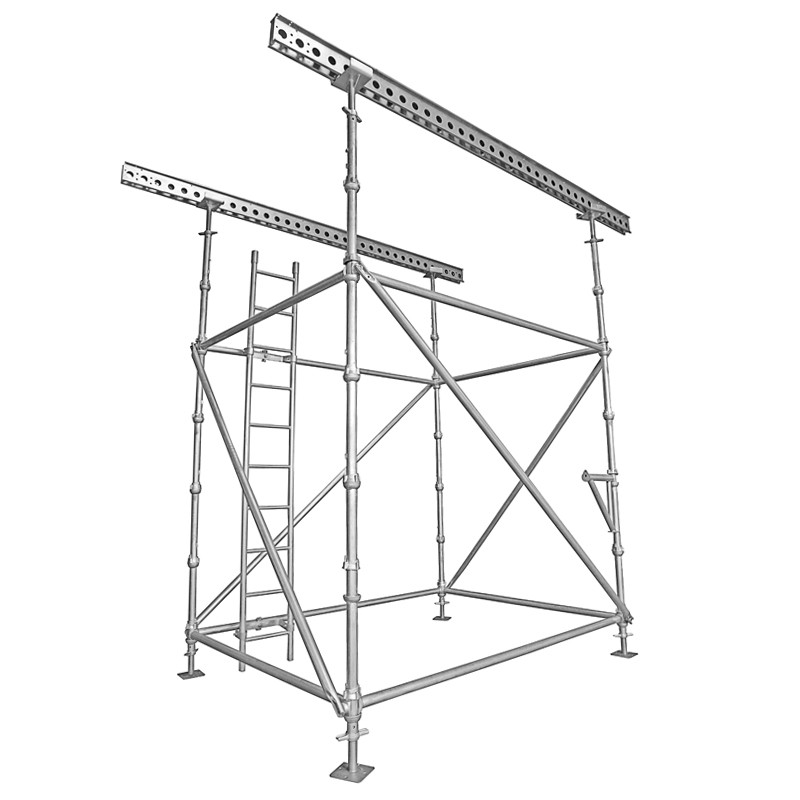

Versatile and durable, our Cuplock scaffold is built to efficiently assist with construction and various support structures.
The biggest scaffolding manufacturer in China with high quality. Why cuplock?

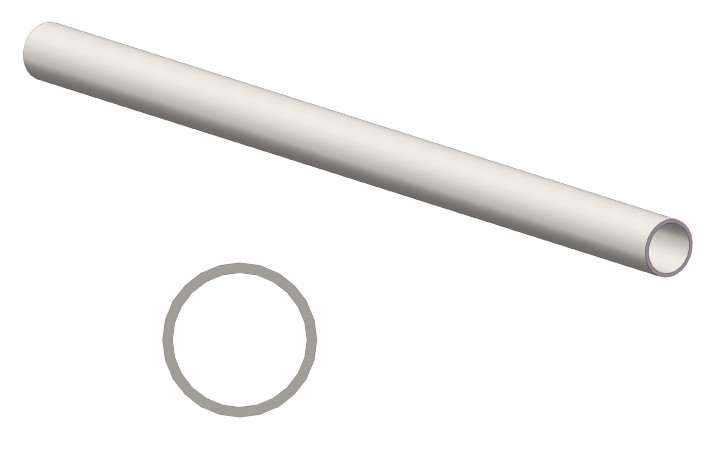

◆ High Standard Process: Q235 ERW, hot-dip galvanized surface enhancing her corrosion resistance; 15 years lifespan.
◆ Multi-functional usage: Adapting to all kinds of construction requirements, especially suitable for the erection of scaffolding and heavy propping.

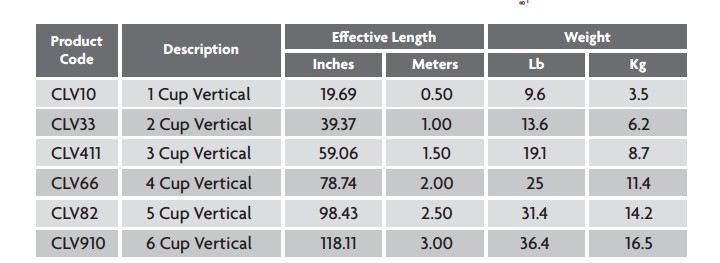

◆ Quick erection, less time and effort: Maximum standard weight reaches 17.07kg, the erection and disassembly rate 3-5 times faster than the conventional scaffolding.
◆ High capacity load: stable and reliable structure with outstanding performance; the joint connector of cuplock can resist high bending, shearing and torsion, with load capacity 15% more than traditional tubular &fitting scaffolding system.
◆ Safe and reliable: Three-dimension axial force express and structure of the scaffold can create high strength, good stability and perfect auto-lock and meet the requirement of safe construction.
◆ Maintenance &management free-trouble: No loose accessories, complete system easy to manage during construct
